DENALI CANsmart™ Kit DM

DENALI CANsmart™ Kit DM consisting of:

• DENALI CANsmart 2.0 Plug-n-Play Controller (1x)
• DENALI DM LED Additional Lighting 10W – By Unit (2x)

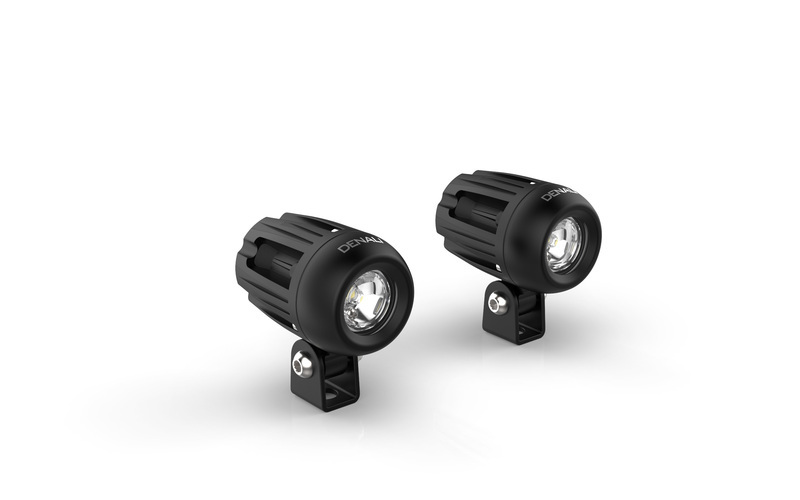

The DENALI DM 2.0 LED TriOptic™ LED light kit with DataDim technology maximizes visibility in an extremely durable, efficient, compact yet very powerful package. The DM is primarily designed for conspicuity, so you’ll stand out from road clutter and be seen by other drivers, but it also provides a useful increase in illumination over your motorcycle’s stock headlight. Fitted into rugged aluminum housings only 43mm in diameter and 63mm long are powerful 10-watt Cree LEDs, providing 120m of useful, confidence inspiring light. The DM’s compact shape allows it to be fitted anywhere your imagination takes it, although it’s really optimized for fender mounting.

Also new with the DENALI 2.0 generation of lighting is the industry-leading TriOptic™ lens system. Each lamp comes with both spot (installed) and flood (supplied) lenses in the box, nothing else to buy. The spot lens produces the greatest beam distance, while the flood lens produces a broader spread of light closer to the motorcycle, filling the road edge and shoulders. To get the best of both worlds, use a spot lens on one light and a flood lens on the other light for distance illumination and a useful spread of light at close range.

With new optics, a revised and more powerful LED, an entirely new wiring harness, and the capability of running in both single- and dual-intensity configurations, the hugely popular DENALI DM just got a whole lot better

Features :

• LEDs 10 watt Cree XPL HI (per lamp)
• Power Draw: 1.6 amps (total)
• Beam Distance (spot): 120m
• Beam Width (spot): 16m
• Raw Lumens: 2190
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12v
• Pod Size: Ø43x63mm

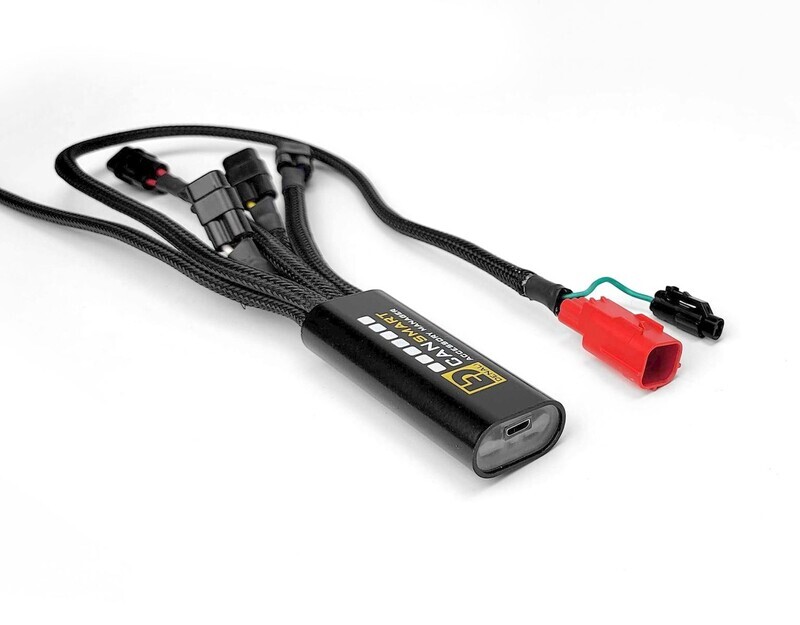

Harness the flexibility and intelligence of your motorcycle’s CAN bus electrical system to make installation of accessories drastically easier with the new and improved DENALI CANsmart™ Controller GEN II. The DENALI CANsmart™ Controller provides plug-n-play installation and integrated control of up to four accessories to enable dozens of customizable settings that can be controlled right from the CANsmart™ Accessory Manager Software.

The CANsmart’s four circuits are preprogrammed to connect and independently control two sets of DENALI lights, a SoundBomb horn, and the B6 auxiliary brake light.

Gen II – More Features, More Power, More Versatile

Unlike the Gen I CANsmart, all four circuits of the Gen II can provide a full 10 amps of continuous power and each circuit can be configured to run any accessory type. The maximum power draw for the whole unit remains at 30 amps continuous. The Gen II also features two new auxiliary light settings. You can now modulate your auxiliary lights for added conspicuity, and set your left and right side lights to independently cancel when you activate your corresponding turn signal.

Features

• High/Low Sync – Set auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.
• ON/OFF and Dim – Independently control two sets of lights ON/OFF and change intensity level (for both day and night) right from your original vehicle switches.
• Modulate Lights – Set auxiliary lights to modulate to increase your visibility to other motorists.
• Flash to Pass – Need to get someone’s attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.
• Cancel With Turn Signal – This feature cancels the corresponding auxiliary light when you turn your turn signal on preventing powerful auxiliary lights from overpowering your signal.
• Inverse Flashing With Hazards – This features flashes your auxiliary lights inversely to your hazard lights, increasing visibility during road side emergency’s.
• Plug & Play Horn Installation – Quickly and easily connect high power aftermarket horns like our SoundBomb™ without having to add an additional harness or relay.
• Strobe with Horn – With this feature selected the CANsmart™ software will automatically strobe your auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBomb™ horn installed.
• Deceleration Activated “Smart Brake” Technology – The CANsmart™ reads vehicle speed in real time to activate your brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.
• Flash Pattern Braking – The CANsmart™ provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).
• Circuit Function Selector – The Circuit Function Selector in the CANsmart software will let you run any accessory of your choice on any of the four circuits. Click on a circuit icon to open the drop down menu and make your selection from the list of available circuit functions.
• Switched Power Source – The CANsmart™ provides a universal “accessory” option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.
• Delay Time Out – You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.
• On Board Power – The “accessory” circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.
