DENALI Universal Kit Foglight D3

DENALI Universal Kit D3 consisting of:

• DENALI DialDim Lighting Controller (1x)
• DENALI D3 LED Fog Light (2x)

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing street-legal fog light to hit the market. Our proprietary fog optics were painstakingly engineered to reach the maximum allowable candela (beam distance) for each of the regulated lighting zones for both the North American SAE/DOT and European Union ECE regulations! The result is a truly unique lens that performs as well as it looks, capable of generating a super-crisp fog beam that is 450 feet long by 350 feet wide at 1 lux (per pair)! No other street-legal fog light even comes close!

Our D3 is also available in our signature TriOptic™ beam system that provides a spot and hybrid beam option (in the same kit) for drivers wanting uncompromised light output when you need it most.

Features

• Best in class street-legal fog beam (SAE/DOT & ECE certified)
• High-Intensity Series Cree LEDs outputting 2800 lumens per pod
• DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won’t crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Amber & selective yellow lenses available (sold separately)

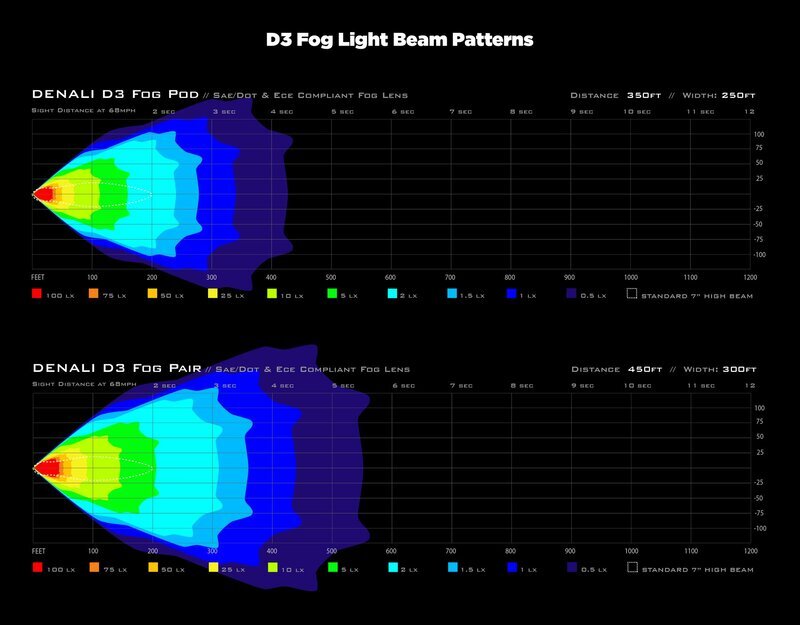

Beam Performance (pair)

• Beam Distance (at 1 lux): 450 feet (137 meters)
• Beam Width (at 1 lux): 300 feet (91 meters)

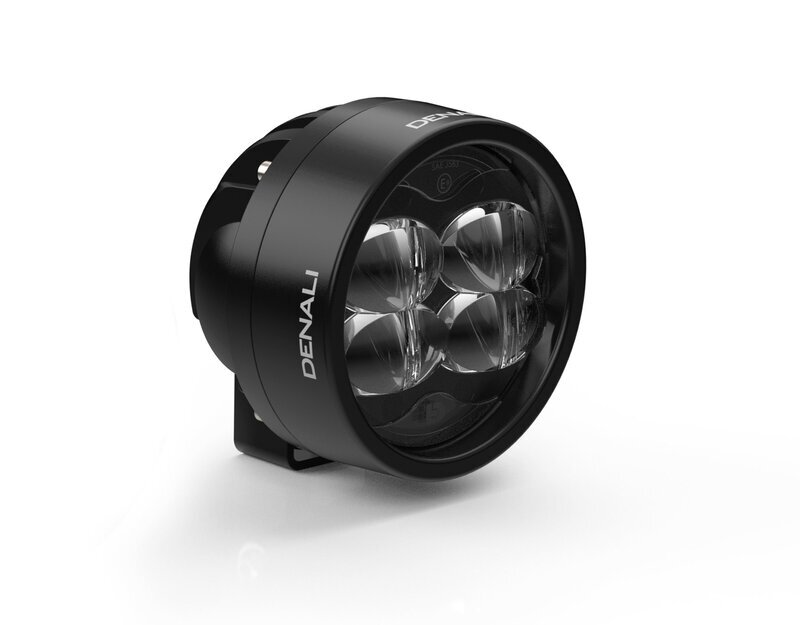

Specs (single pod)

• Pod Size: 3.5″ (90mm) Round x 3.0″ (76mm) Deep
• LED: (4x) 11 Watt Cree XP-P LEDs
• Power Draw: 40 Watts (3.3 Amps)
• Lumens: 2800
• DataDim™ Compatible: Yes
• Operating Voltage: 9-32V DC
• IP67 Waterproof & Submersible
• Fog Lens Certifications: SAE/DOT J583 & ECE R19

What’s in the Box?

• (1x) D3 LED Fog Light Pod
• (1x) Hinge Mounts with M8 Stainless Steel Hardware
• (1x) Wiring Pigtail

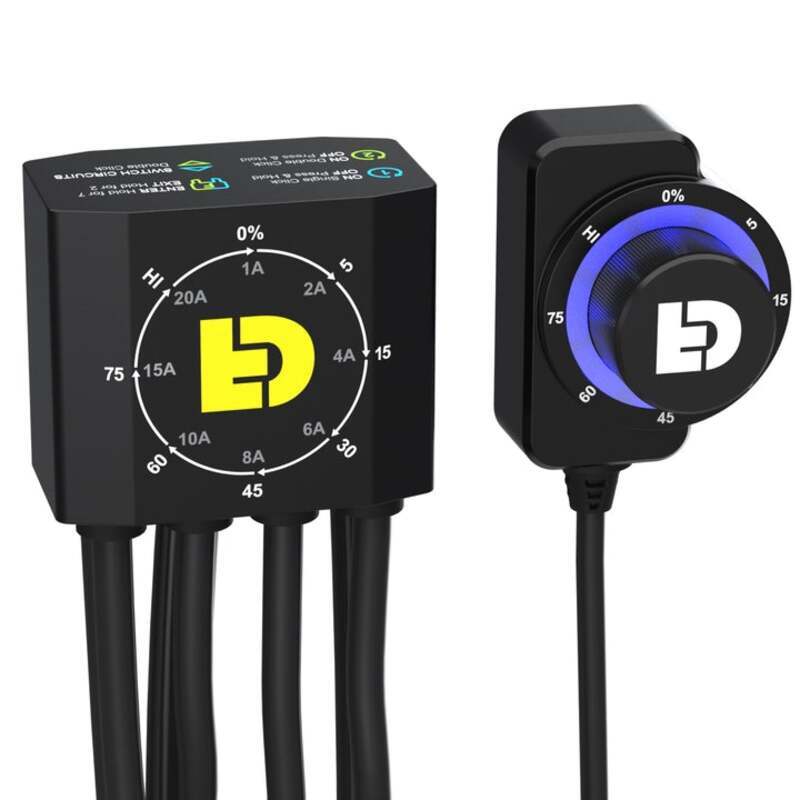

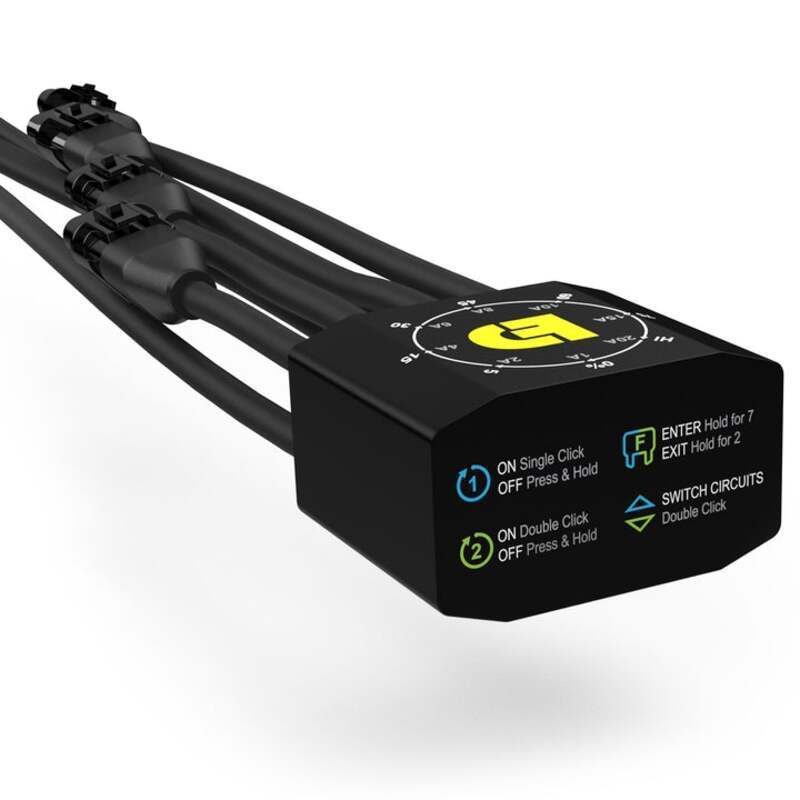

DialDim™ Lighting Controller

Allows to sell a complete solution with easy control of all light functions

• Independently turn on/off and dim two sets of auxiliary lights from a single switch
• LED halo switch displays your exact settings
• Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.


On/Off & Dim
Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync

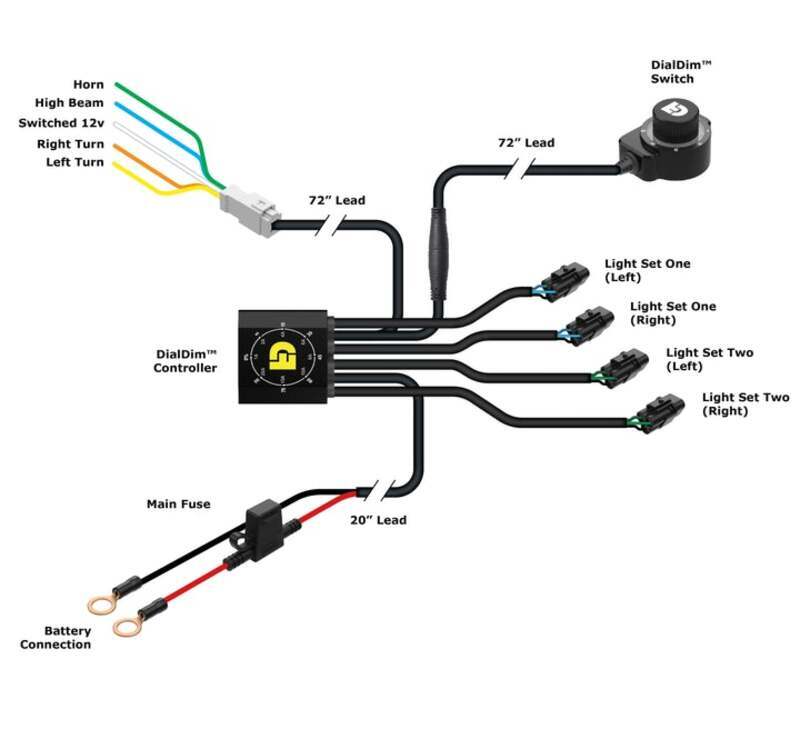

Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode
A clever 0% dim setting on the switch allows your lights to be “off” during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal
When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent “washing out” your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal
When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn
When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits
Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator
Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff
If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.
